Revolutionarily Easy Leak Detection with Portable Helium Spray Gun

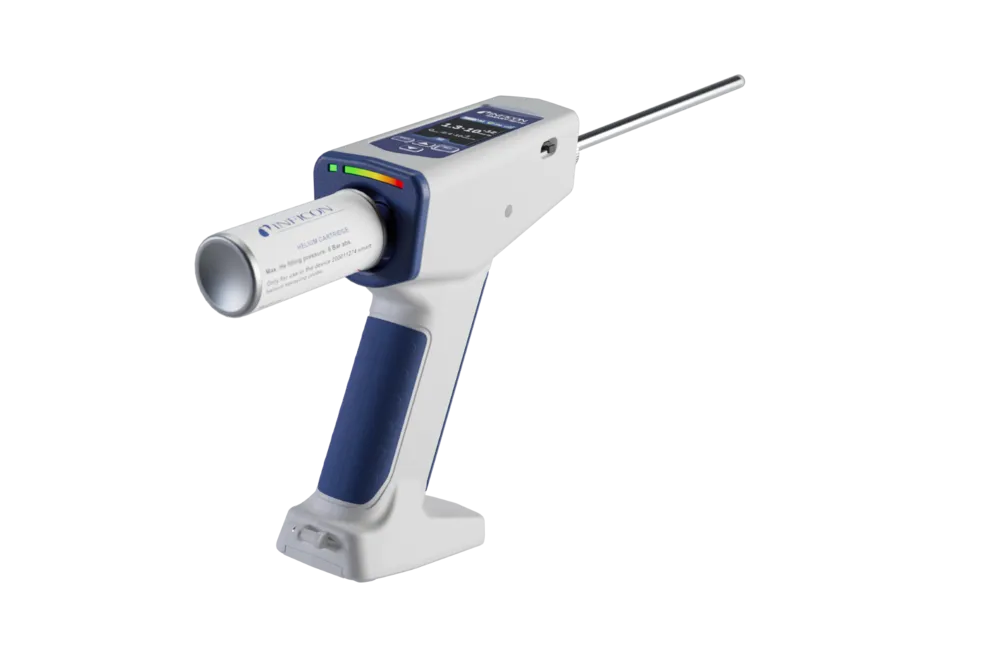

With our intelligent add-on SMART-Spray, a mobile, wire- and hoseless helium spray gun for the UL Family of leak detectors, you can elevate your leak detection to new heights:
Working with SMART-Spray makes your leak detection significantly faster, easier, more reliable and more effective while saving helium.

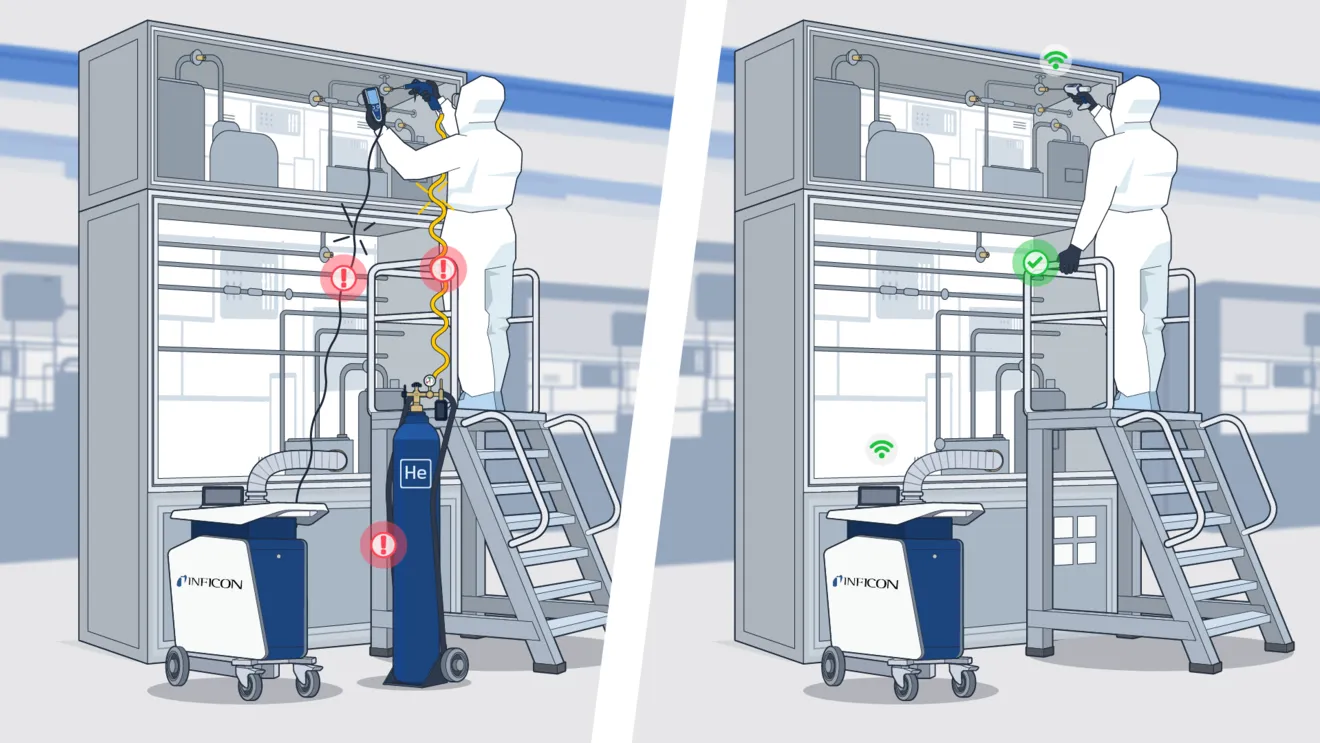

Eliminating the connection hose and operation errors: SMART-Spray Helium Spray Gun makes leak testing more flexible and efficient than ever before. Forget time-consuming handling of bulky helium cylinders, working range limitation by a hose connection and error-prone manual adjustment of the helium flow.
SMART-Spray is fully compatible with the UL Family of vacuum leak detectors. The main application is spray pin pointing in the semiconductor industry.
- UL1000 Fab Series and UL5000
- UL3000 Fab Series
- UL6000 Fab Series
Advantages
- Hoseless handheld tool for maximum flexibility and easy handling
- Precisely predefined helium quantity for optimum helium flow
- Refillable mini cartridges (HeliCan) with more than 1,000 sprays
- Integrated color display to indicate readiness for use and graphical or numerical leak rate indication
- Status LEDs indicating helium spray duration and surpassing of leakrate threshold combinable with haptical vibration feedback
- Simple control of the leak detector, such as via remote control
- Integrated lighting for darker areas
- USB-C charging port and replaceable battery
SMART-Spray can be operated with either 50 ml or 405 ml helium cartridges (HeliCan), depending on your preference for accessibility in narrow spaces or for extended use.
When filled to a maximum relative pressure of 6 bar, the 405 ml HeliCan provides over 5,000 sprays of 2 seconds at 12 sccm, while the 50 ml cartridge allows for more than 600 sprays of 2 seconds at 12 sccm. Using larger flows of 70, 250, or 1,100 sccm reduces endurance linearly, enabling integral testing.
Specifications
| Available flow rates* | ~ 12 sccm, M ~ 70 sccm, L ~ 250 sccm, XL ~ 1100 sccm |
| Number of sprays of HeliCan 50 ml** | S > 600, M > 110, L > 30 |
| Number of sprays of HeliCan 405 ml** | S > 5000, M > 900, L > 260, XL > 50 |
| Adjustable duration of each spray | 1.0 to 9.9 s |
| Battery | Li-Ion, 3.63 V, 3.35 Ah, 12.16 Wh |
| Battery operating time | > 10 h (at full capacity) |
| Leak detector remote control | All basic functions, such as: start/stop, zero, etc. |
| Screen | 1.8 inch 280 x 320 pixel color display: Graphic/numerical leak rates and status display (remote control, battery, approx. HeliCan level, approx. number of sprays remaining) |
* At 20 °C ambient temperature | |
Gas
- Helium
Market
- Semiconductor IDM & Foundry
- Semiconductor Tool Manufacturer
