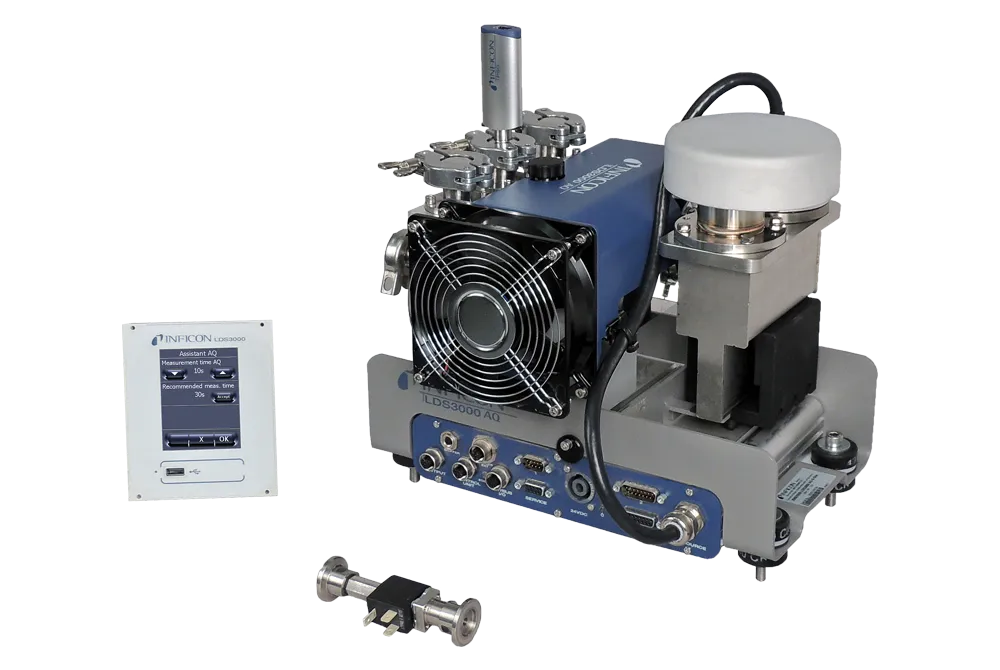

LDS3000 AQ is the first leak detector to use forming gas or helium in a simple accumulation chamber.
The new leak detector uses cost efficient forming gas or helium for accumulation leak testing. The LDS3000 AQ is very sensitive and can detect leaks down to the 10-5 mbar∙l/s range.
It will detect fluid leaks as reliably as helium vacuum leak testing, but with cost nearly at the cost of air testing. The real differentiator: The new leak detector uses the cost efficient forming gas or helium for accumulation leak testing.
The LDS3000 AQ is a product variation of the proven LDS3000 system vacuum leak detector and uses the same user interface and also offers the newest fieldbus interfaces.
Features
- Very sensitive by detecting leaks down to 10-5 mbar l/s for both gases
- Communicative diversity through a wide range of analog and digital interfaces
- Unique accumulation leak detector for forming gas and helium
Advantages
- Cost efficient solution to leak test parts
- Testing as reliable as vacuum chamber - at nearly the cost of air testing
- Ready for the future with fieldbus interfaces for the Industry 4.0 integration
- Temperature and humidty indipendency offers reliable test results with high repeteability
Specifications
| Measurement range | decades | 5 |
| Dimensions (LxWxH) | mm in | 272 x 130 x 272 10,7 x 5,1 x 10,7 |
| Time constant of the leak rate signal | s | <1 |
| recorder output lin/log | 0 - 10V | |
| Test chamber pressure | Atm | 1 |
| Run up time | min | <3 |
| Status / Trigger outputs | 8 x relaiscontacts (max. 60V DC / 25V AC / 1A) | |
| Control inputs | SPS compatible (max.35V) | |
| Minimum detectable leak rate | mbar•L/s | 1.00E-06 |
Gas
- Helium
Market
- HVAC/R
- Mobility & Automotive
