Setting the Industry Benchmark for Accuracy and Throughput

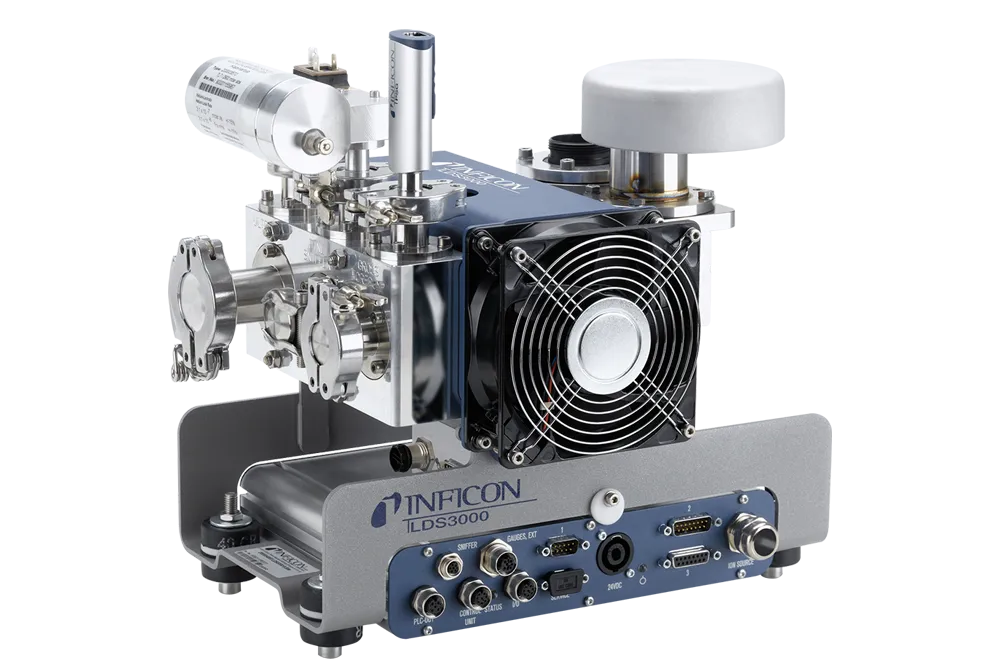

The LDS3000 helium leak detector combines high accuracy and repeatability with shortest cycle times in the market, making it the ideal choice for vacuum leak testing systems. Its compact design ensures seamless integration with minimal installation effort and space requirements. Enhance your operations with modern fieldbus systems for optimized performance.
EcoBoost Technology - For Maximum Efficiency and Helium Savings
The unique and patented EcoBoost feature enables the LDS3000 leak tester to detect smallest leaks, even on high and decreasing tracer gas background levels. Due to excellent instrument quality leading to extremely precise, repeatable and linear measurements, an intelligent algorithm predicts decreasing tracer gas backgrounds with high accuracy.
With EcoBoost, the LDS3000 Helium Leak Detector can detect leaks early in the testing cycle and without the risk of missing small leaks. EcoBoost can also allow for the use of smaller, less energy consuming pumps and significantly reduce helium consumption, leading to lower operating costs and increased efficiency.
Advantages
- Market leader in cycle time: Rapid detection of leak rates up to 1 x 10-11 mbar l/s in less than 1 second
- Compact design for quick and easy integration
- Reliable performance
- Highest accuracy and repeatability in the market
- PROFIBUS interface for simplified connectivity and interoperability, remote access and high data transfer efficiency.
- Digital interfaces, including RS232, RS485, USB
- Wide range of analog interfaces
- Minimal downtimes and reduced maintenance requirements
- Fast calibration times, typically around 20 seconds
- Optional touch screen display
Specifications
| Min. detectable leak rate for Helium "ULTRA"-Mode | mbar·l/s | <1E-11 |
| Min. detectable leak rate for Helium "FINE"-Mode | mbar·l/s | <5E-11 |
| Min. detectable leak rate for Helium "GROSS"-Mode | mbar·l/s | <1E-9 |
| Min. detectable leak rate for Helium "Sniffer"-Mode | mbar·l/s | <1E-7 |
| Measuring units | mbar·l/s, Pa•m³/s, Atm cm³, g/a, ppm | |
| Max. inlet pressure "ULTRA"-Mode | mbar | 0.2 |
| Max. inlet pressure "FINE"-Mode | mbar | 0.9 |
| Max. inlet pressure "GROSS"-Mode | mbar | 18 |
| Response time | s | <1 |
| Digital inputs/outputs (if used with IO1000 Modul) | 10 inputs / 8 outputs | |
| Control input | V | max. 35 (PLC compatibel) |
| Ion Source | 2 yttrium/iridium long-life cathodes (3 years guarantee) | |
| lin/log recorder output | V | 0-10 |
| Serial interface (with IO1000 / BM1000) | RS232, RS485, Fieldbus | |
| Dimensions (L x W x H) | mm in | 330 x 240 x 280 13 x 9.45 x 11.1 |
| Ambient temperature range | C F | 10 - 45 50-113 |
| Vacuum connections | DN 16 KF, DN 25 KF | |
| For the operation of the LDS3000 leak detector you need as basis one data cable and a IO1000 Module or BM1000-Modul | ||
Gas
- Helium
Market
- HVAC/R
- Battery
- Energy
- Mobility & Automotive
